SPHE8388

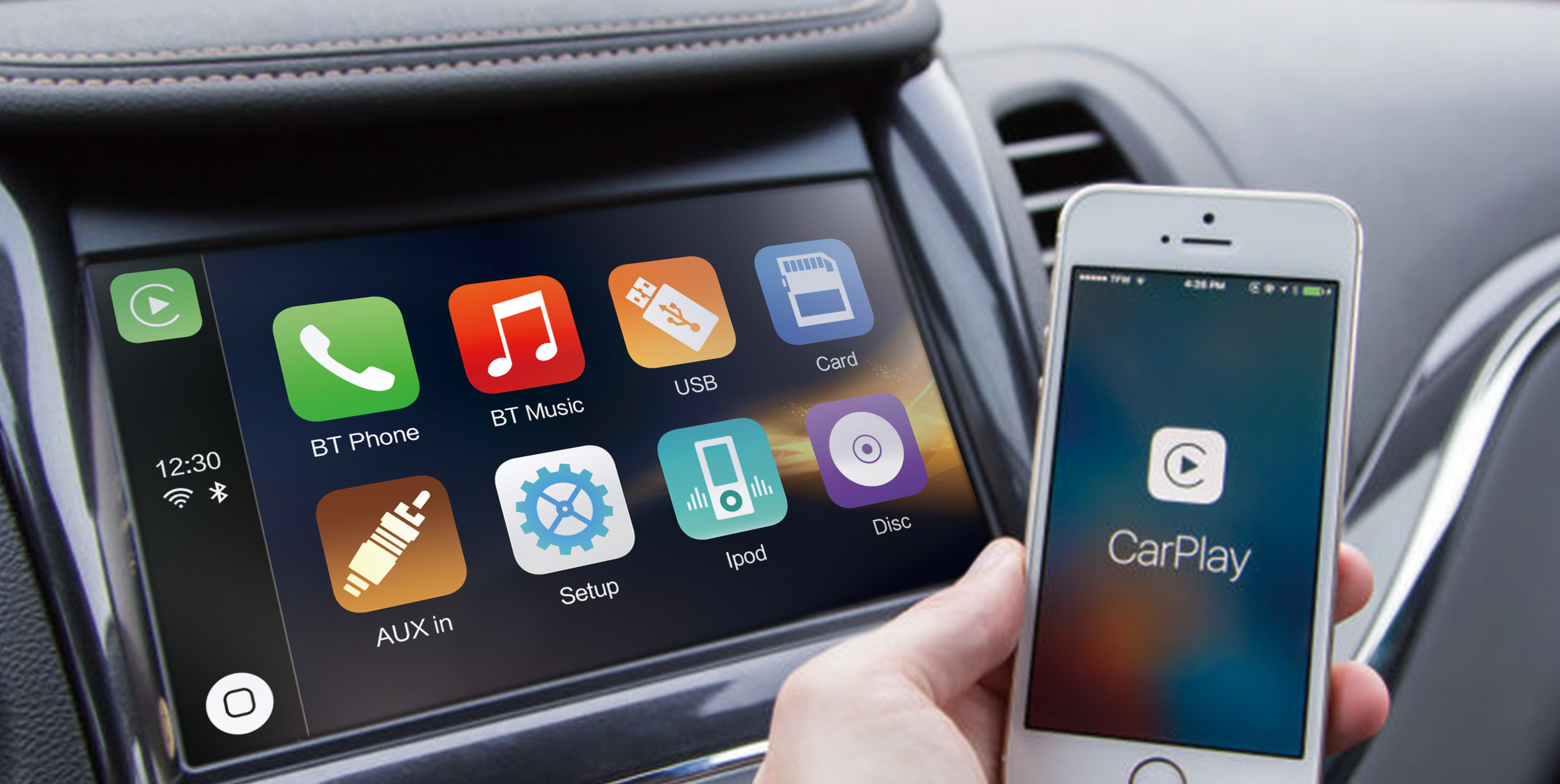

SPHE8388 is a highly integrated system-on-chip for In-Vehicle Infotainment applications with base on ARM Cortex-A9. SPHE8388 is pin-compatible with SPHE8368

It consists of disc reading front-end and AV data processing back-end. SPHE8388 can support DVD, and CD playback. It features MPEG1 / MPEG2 / MPEG4-SP / H.264 video decoders that can decompress full high-definition video streams.

Features

• Cortex-A9,GPU,GPS baseband. and high performance 32-bit high performance audio DSP
• TV decoder: enhanced NTSC/PAL video decoder w/ 3D comb filter
• Audio interface

  - I2S input/output

  - 6-channel audio ADC input and 4.1-channel audio DAC output

• Audio Decoder: flexible Programmable DSP Architecture
• Video decoder: real time 1080p video decoding
• OSD engine

  - 32 bit RGBA true color

  - Vertical/ horizontal bi-linear scaling up

• LCD Timing Controller(TCON)

  - 18/24 bits TTL panel and dual LVDS panel for HD display

  - Support LVDS interface panel,resolution up to 1920x1080

• TV encoder: support 480i/480p/576i/576p format and CVBS output

  - High Performance DDR3 controller,support DDR3 up to 1600MHz

  - Built-in 12 bit SARADC

  - Embedded Nand flash controller

  - USB host/device mode

  - Support 2 ports SD card and 1 port SDIO interface

  - I2C master mode and SPI master/slave mode

  - Embedded GPS baseband
