SPA101

低阶Soundbar 方案

支持Dolby ，DTS

支持 LC3 编解码

支持蓝牙转传

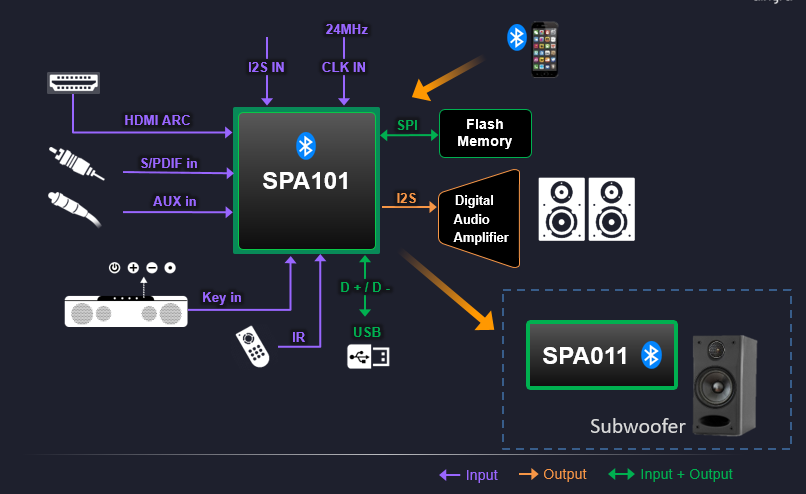

应用场景：

14. Soundbar.
14. Bluetooth speaker.
14. Party speaker.
14. PC speaker.
14. Conference speaker.
14. Wireless subwoofer/surround speaker transform

The airlyra SPA101 is a highly integrated system-on-chip with Bluetooth^® Version5.3, audio decoder and audio post-processor and memory. It is mainly composed of a M4, and 32-bit DSP processor and memory. The high performance DSP, is capable of audio decoding, sample rate conversion, and audio post processing such as bass enhancement and virtual surround sound, as well as a built-in audio signal flow is provided for speaker compensation, including bass/treble tone control, PEQ, crossover filters, bass management, and DRCs, which normally found only in high-end professional audio equipment to deliver unsurpassed sound effect.

The SPA101 is delivering an excellent audio solution in a way that makes it implementation convenient, function complete and cost effective -- provides the fruitful interfaces and tools for system easy to bring-up, features the high performance and powerful processing ability in audio functions, and even embeds a lot external parts containing memory for much simplifying the bill of materials on system. Most importantly, SPA101 is born to offer a perfect solution to the developer in producing the best cost-performance Home Audio for the upcoming growth markets

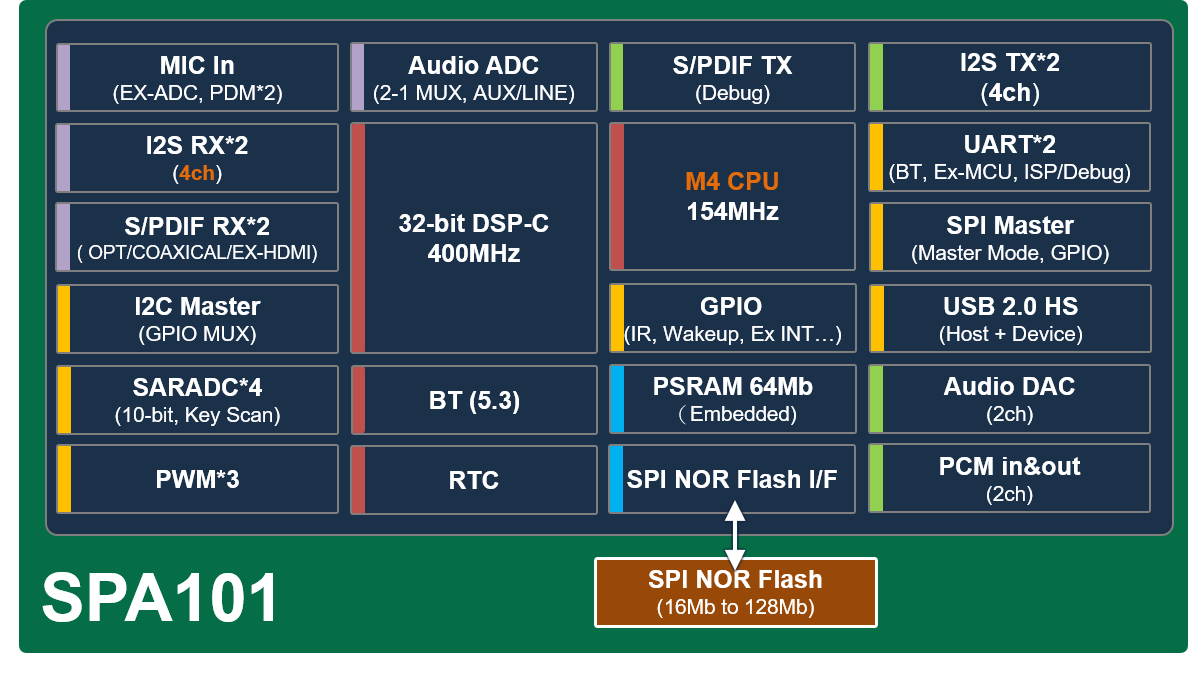

FEATURE

Kernel Cores

1. 14. ARM Cortex-M4, clock up to 154MHz.
   14. 32-bit DSP, more than 400MIPS computing power.

Memory

1. 14. Integrated 64Mb PSRAM.
   14. 1-/2-/4-bit SPI Flash interface to external 16Mb to 128Mb SPI NOR Flash memory.

Bluetooth

• 14. Bluetooth 5.3 specification compliant
  14. Support HFP1.8, HSP 1.2, A2DP 1.3.2, AVRCP 1.6.2 and SPP 1.2
  14. Support LE Audio, LC3 and LC3 Plus.
  14. Bluetooth classic(BR/EDR), 1Mbps/2Mbps/3Mbps.
  14. Bluetooth Low Energy(BLE), 1Mbps/2Mbps.
  14. Bluetooth Low Energy Long Range, 500kbps/125kbps.
  14. Modem and RF
• Support GFSK 2Mbps/1Mbps/500Kbps/125Kbps, pi/4 DQPSK 2Mbps, 8DPSK 3Mbps
• BR/BLE: 9 dBm
• EDR2 and EDR3: 6dBm

Peripheral Interface

1. 14. 24MHz crystal in for all clock sources.
   14. 2 UARTs.
   14. PWM controller for 3 analog voltage control.
   14. High-speed USB 2.0 Host/Device for sound tuning, firmware upgrade or music playback.
   14. 4* SARADC(10-bit) for multi-key support.
   14. 1 SPI for flash.
   14. Support IR for remote control (include IR learning).
   14. I2C*2 interface.
   14. Integrated RTC.

Audio Interface

1. 14. 4 channels of I2S input.
   14. 2 channels of ADC for LINE/AUX 24bit input.
   14. 4 channels of PDM input for MIC.
   14. 3 S/PDIF input for Coaxial/Optical/HDMI, Support ARC.
   14. 4 channels of I2S output.
   14. 2 channels of Analog output.
   14. BT PCM*1(in and out)
