SPA300

SPA300 Premium HD Audio Processor with Multi-core DSP.PDF

丰富的Audio 接口，UART,I2C,SPI 等外设接口一应俱全

FreeRTOS 小系统，快速出声音，不等待

轻松实现 3th party 算法

参数齐全、界面美观的的Audio 调音Tool

轻松导入Audio 调音参数，无需重复烧code

厂内各种Audio 认证pretest ，让您轻松通过Dolby/ DTS 产品认证

• 丰富应用场景：
• Personal Speaker

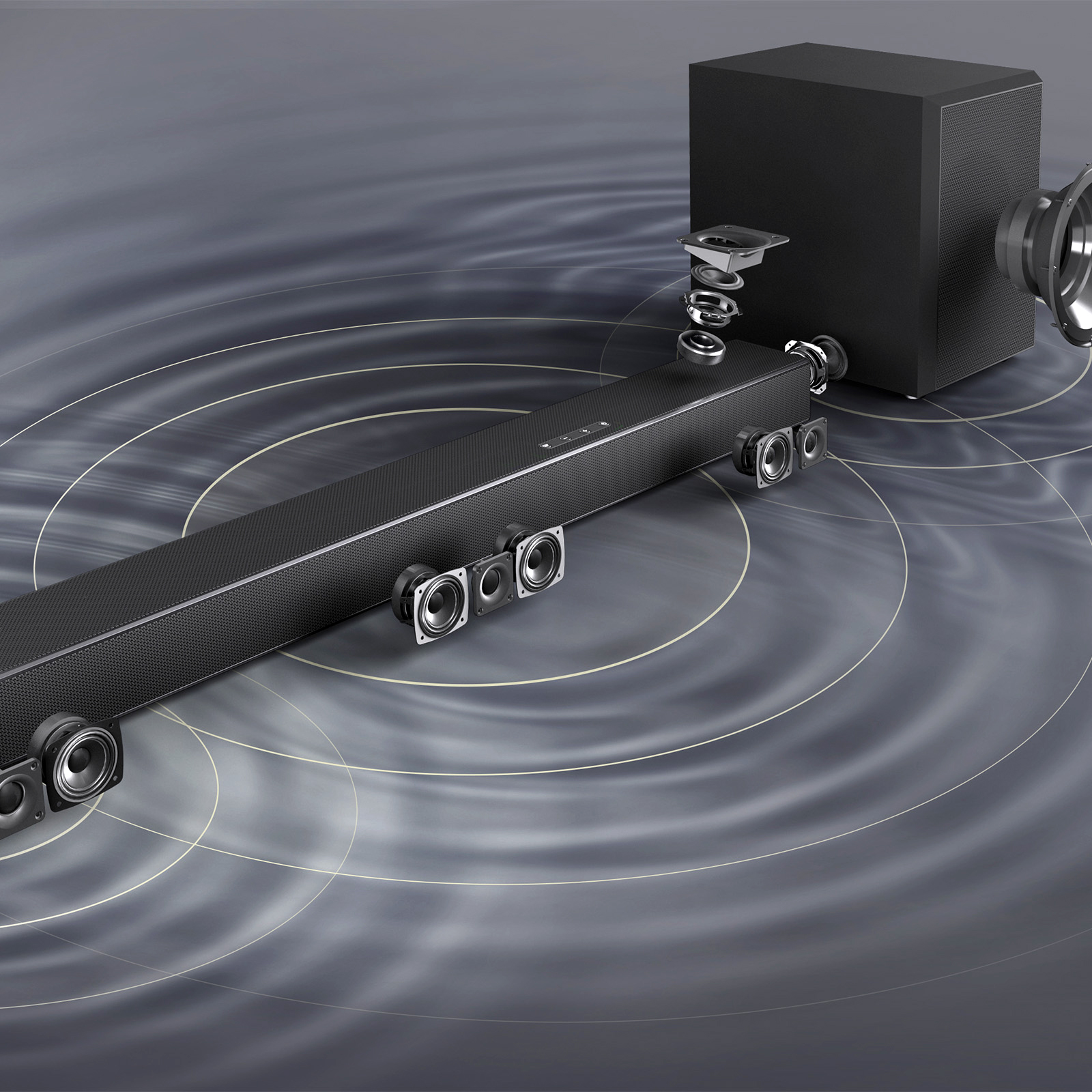

• Premium Soundbar
• Boombox Speaker
• Party Speaker
• Karaoke/DJ Speaker
•

The airlyra SPA300 is a highly integrated system-on-chip with high-definition audio decoder and audio post-processor. It is mainly composed of a 32-bit RISC microprocessor, an 8-bit I/O processor, and multi-core 32-bit DSP processors. The high performance DSPs, are capable of audio decoding, sample rate conversion, and audio post processing such as bass enhancement and virtual surround sound, as well as a built-in audio signal flow is provided for speaker compensation, including bass/treble tone control, PEQ, crossover filters, bass management, and DRCs, which normally found only in high-end professional audio equipment to deliver unsurpassed sound effect.

Kernel Cores
 32-bit RISC microprocessor, clock up to 320 MHz
 8-bit I/O processor for system standby control
 32-bit Multi-core DSPs, totally more than 2,000 MIPS computing power
Memory
 Integrated 128Mb DDR, frequencies up to 1,066 MHz
 1-/2-/4-bit SPI Flash interface to external 16Mb to 512Mb SPI NOR Flash memory
Peripheral Interface
 24.576MHz crystal in for all clock sources
 UART for connecting to BT, MCU, ISP (In System Programming)
 SDIO for SD memory card or Wi-Fi module
 PWM controller for 3 analog voltage control.
 High-speed USB 2.0 Host/Device for sound tuning, firmware upgrade or music playback
 10-bit SARADC for multi-key support
 SPI support master mode
 Support IR for remote control (include IR learning)
 I2C Master & Slave
 More GPIO
Audio Interface
 8 channels of I2S input for HDMI HBR mode
 2 channels of I2S input
 2 channels of ADC for LINE/AUX input
 2 channels of PDM input for MIC
 3-to-1 S/PDIF input from Coaxial/Optical/HDMI
 16 channels of I2S/TDM output
Audio Processor
 Support Dolby ATMOS (include Dolby DAP)
 Support DTS: X (+DTS Virtual: X)
 Support MP3/AAC/HEAAC/WMA/WMA Pro decoders
 Support FLAC/ALAC/WAV HiRes decoders
 Support in-house APP: S+ Spatial Sound/VBass/Matrix/ DRC and Biquad Filters for PEQ/Bass/Treble/Crossover.
 Support 3rd party APP with highly compatibility.
* APP: Audio Post-Processor
Platform
 On-line PC tuning tool
 Customized DSP algorithm support
 Best-in-class BOM
Package
 LQFP-128, 14mm x 20mm
